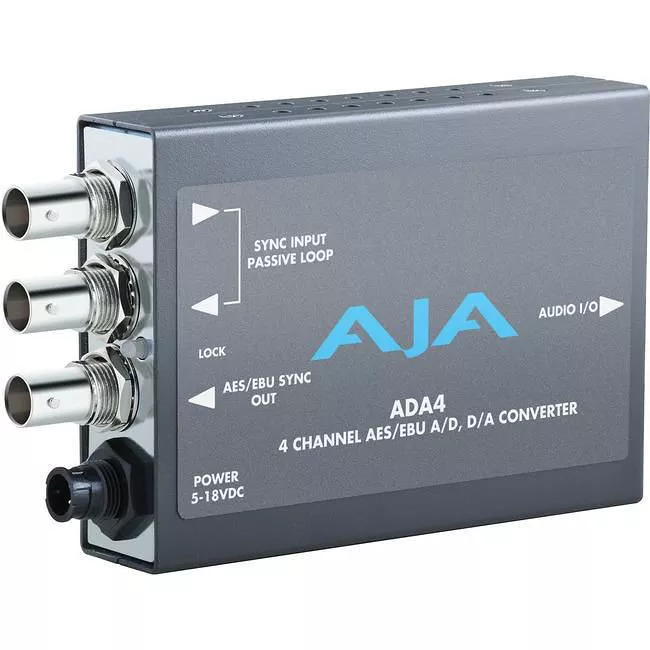

The ADA4 is a 4-channel converter that can be configured as a 4-channel A/D, a 4-channel D/A, 2-channel A/D and 2-channel D/A, or an AES synchronizer.

Supplied Breakout Cable

The included breakout cable provides the audio connections for ADA4, allowing 8 channels of AES audio input and output while keeping the overall size of the Mini-Converter compact and portable.

External Sync

ADA4 accepts an AES11, wordclock or video sync/color black reference input for synchronization. Reference input and synchronization are automatic with a passive looping reference as well as a separate AES sync output.

Quick configuration

Easy-to-access DIP switches allow the audio levels on ADA4 to be configured quickly and clearly while in the midst of a production.

Features

• Simultaneous A/D and D/A, or AES Synchronizer
• Full-time AES11 low jitter reference output
• Up to 4 channels of balanced analog to AES/EBU audio
• Up to 4 channels of AES/EBU to balanced analog audio
• Supplied XLR breakout cable
• AES11/Wordclock/Tri-level Sync/Color Black Reference Loop
• Adjustable Audio Levels
• Sample Rate Conversion Between 96KHz and 48KHz
• Dipswitch configuration 5-18VDC Power

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
