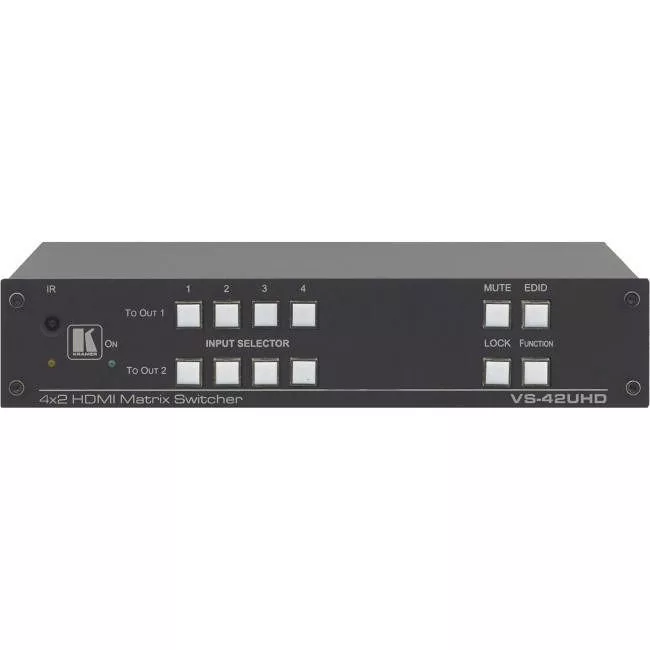

VS-42UHD is a high-quality, 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.

• Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
• Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
• HDCP Compliant
• True Video Clock Detection.
• Automatic Switching Modes - Last connected and priority switching.
• HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
• Programmable Step-in Functionality - When used with compatible step-in devices, such as the SID-X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
• Non-Volatile EDID Storage.
• Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
• Static or Dynamic DHCP IP Addressing.
• Embedded Web Pages - Provide remote configuration and operation.
• Lock Button - Prevents tampering with the front panel buttons.
• Kramer Protocol 3000.
• Versatile Control Options - RS-232, Ethernet, infrared remote control, optional remote IR receiver.

Applications

• Conference rooms
• Education
• Hospitality
